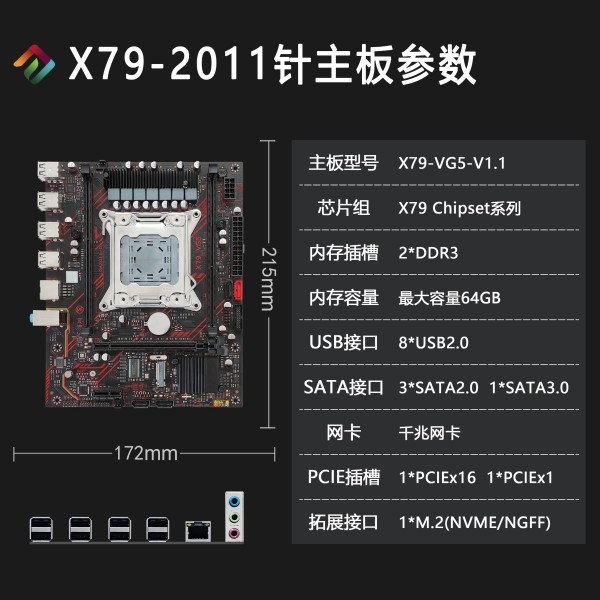

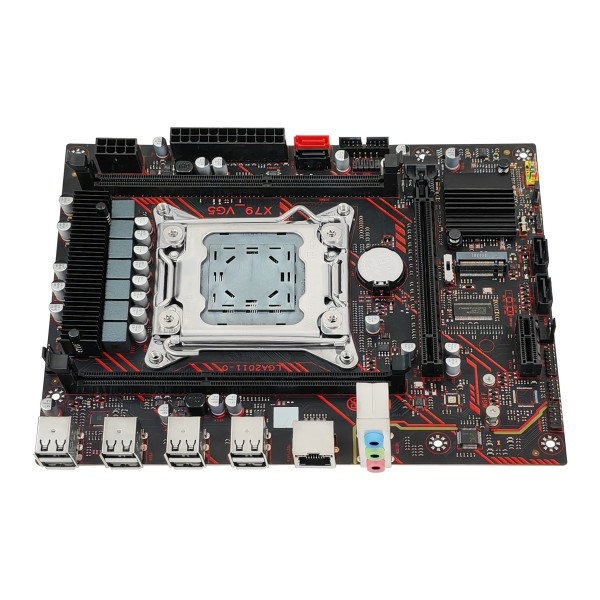

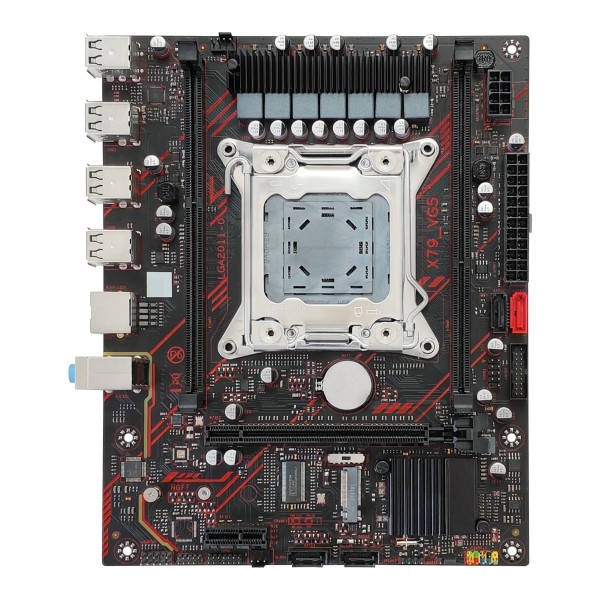

Motherboard chip

Intel X79 chipset

CPU

InteI LGA 2011-0 socket processor

memory

Dual-channel memory architecture;

2*DDR3; 240-Pin DIMM slot, supporting 1066/1333/1600/1866 MHz, and a single slot can support 32GB at most.

(Actual memory frequency support depends on processor type and memory stick)

Storage device interface

1* M.2 slot (NVME&NGFF); (m.2: Gen3x4 or SATA3.0); Support 2280/2260 type equipment;

1* SATA 3.0 interface (Intel X79 chipset);

3* SATA 2.0 interface (Intel X79 chipset);

Network function

1*(RJ45+LED) interface; (Realtek Gigabit NIC chip)

PCIE expansion slot

1*PCIE2 slot (Intel processor 1x PCIe3.0 x16 slot);

1*PCIE1 slot (Intel X79 chipset 1x PCIe2.0 x1 slot);

audio frequency

1*Line out； 1*Mic In； 1*Line In； 1*JAudio built-in pin (Realtek 5.1 sound card chip)

JTPM

1*TPM2.0 (14-1pin)

Usb interface

Rear panel: 8 * USB2.0；;

Front panel: 1 set of FUSB3 pins (2 * USB2.0 ports can be expanded);

1 set of FUSB1 pins (2 * USB2.0 ports can be extended);

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CFAN1； 1*3Pin SFAN1 ;

Power input

24Pin+8Pin ATX power socket

product size

172 x 215 mm x 4L； M-ATX motherboard

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 55~60W Full load power consumption: 190~200W (for reference only) (excluding GPU power consumption)

(If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

other

1*JBAT jumping cap; 1*JLPC diagnostic card interface;

support system

W Windows 7、Windows 10、Windows 11
